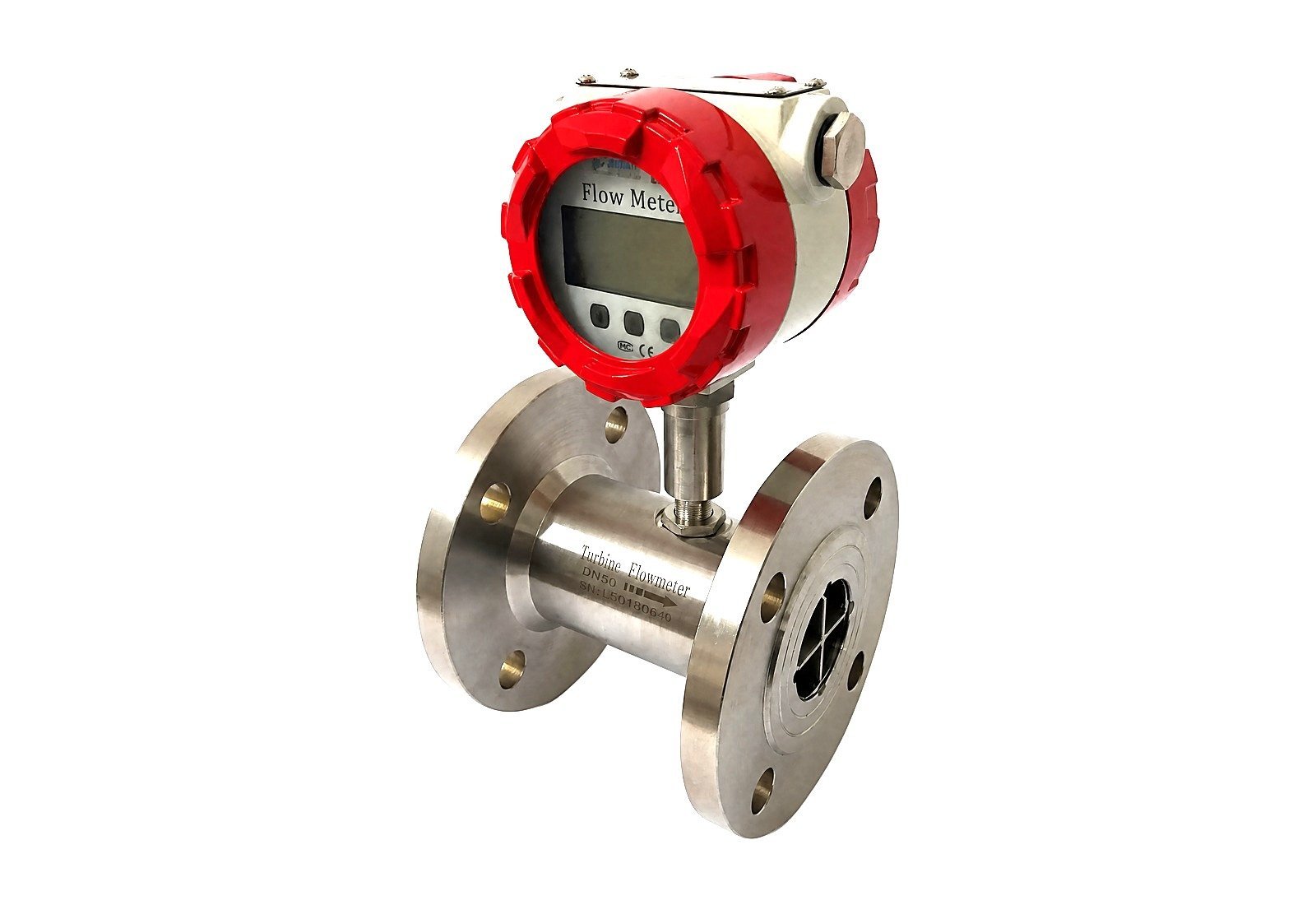

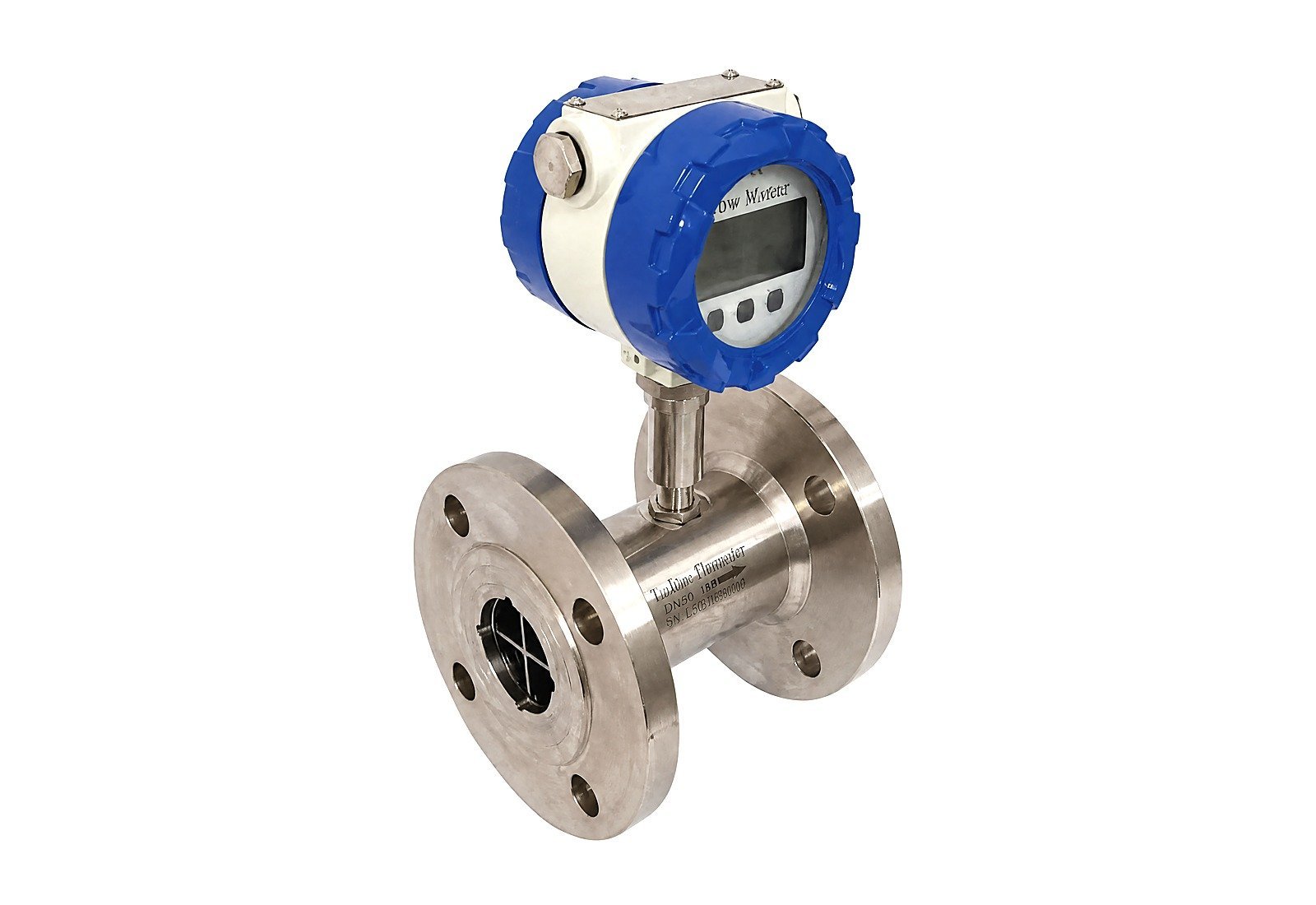

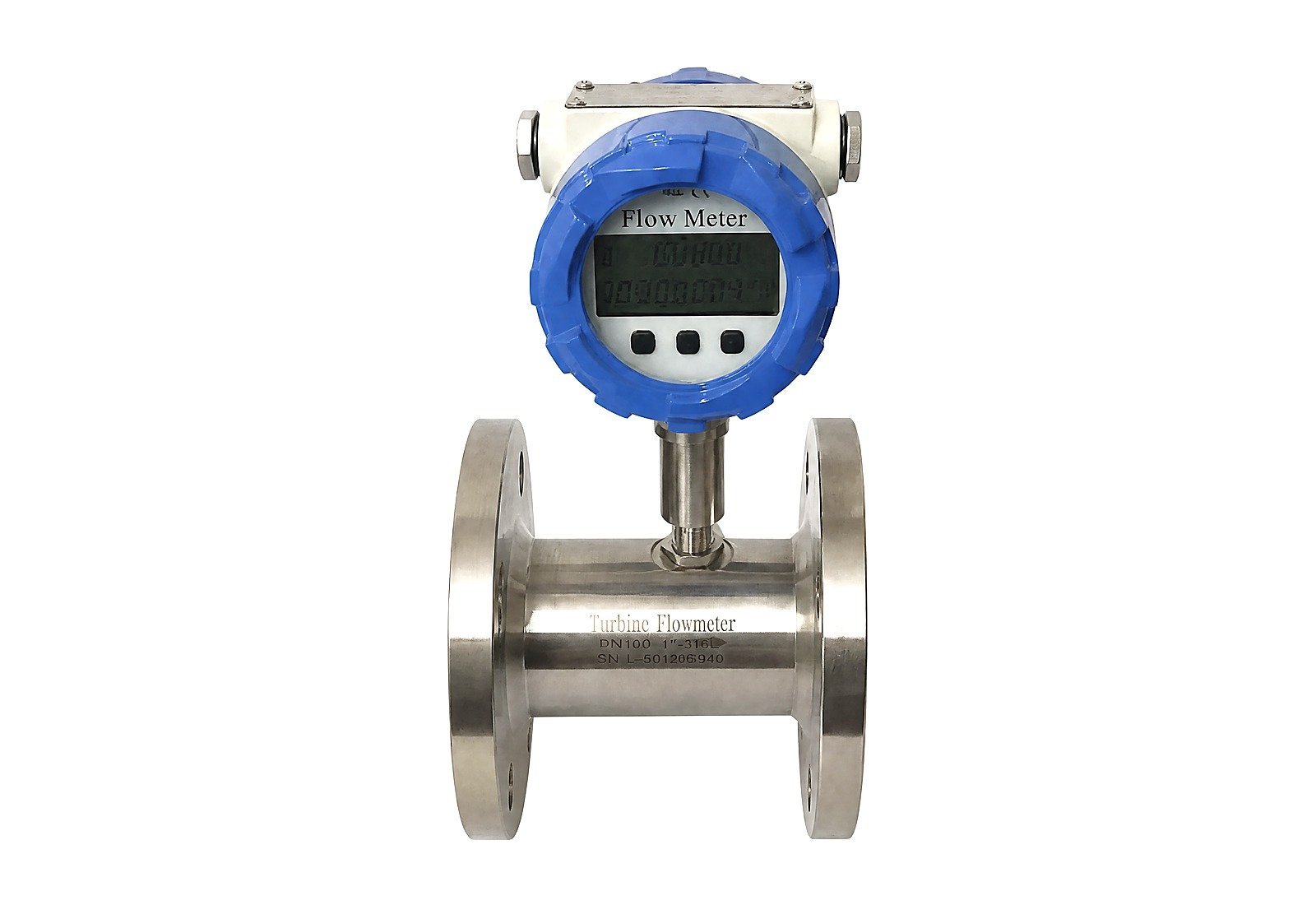

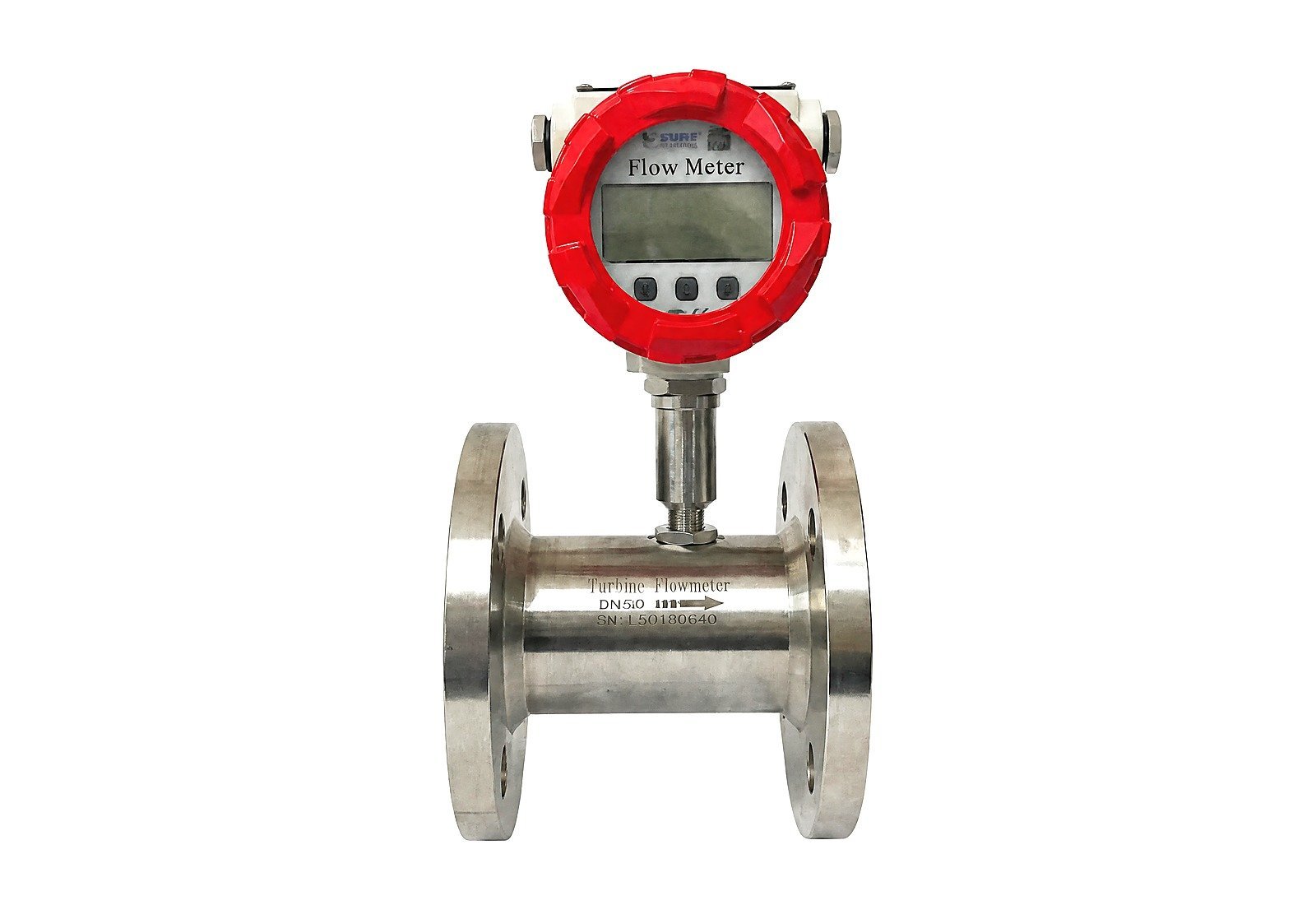

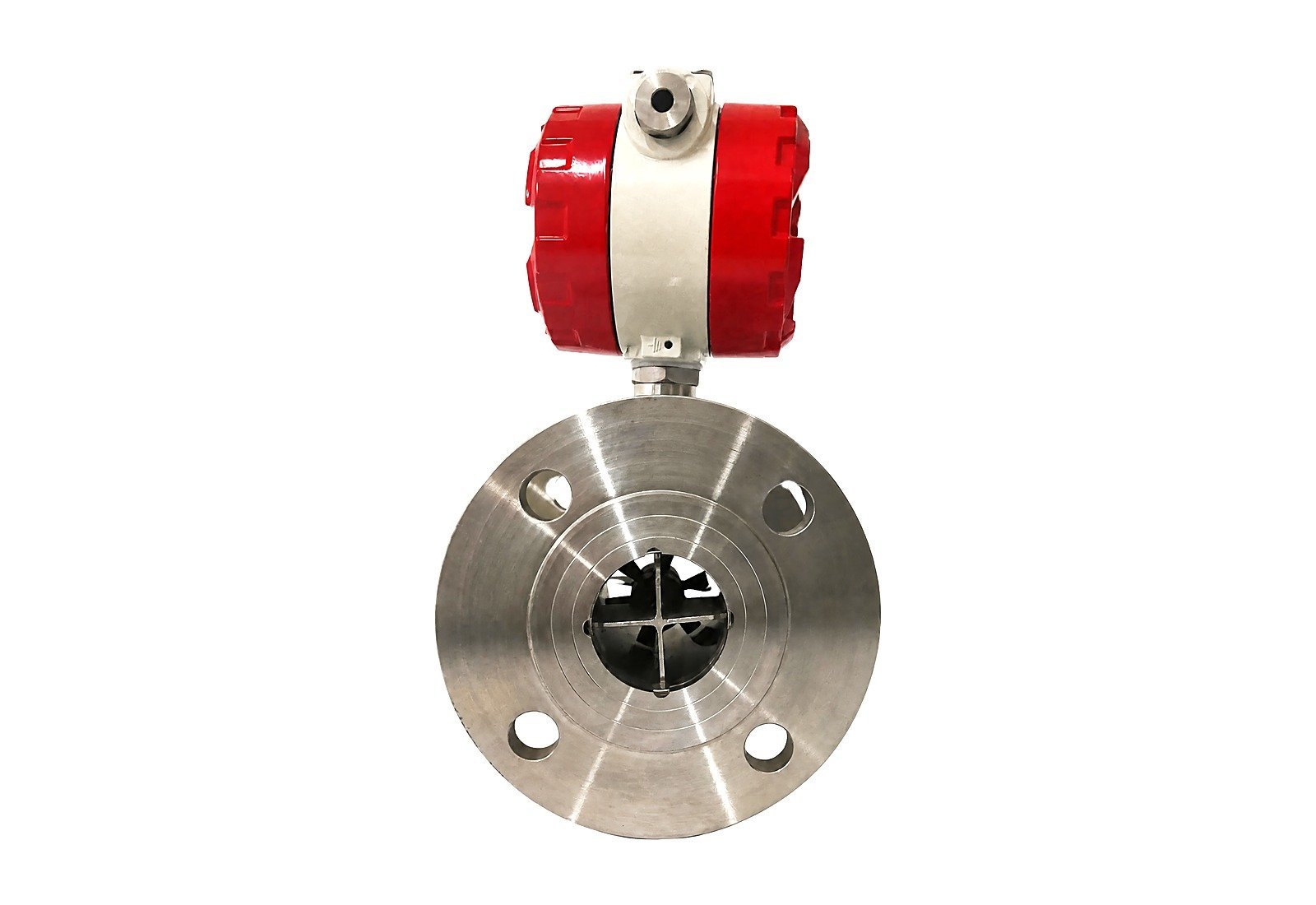

IF-TF-A Flanged Turbine Flowmeter
IF-TF-A
High-accuracy volumetric flow measurement for clean liquids and light hydrocarbons.
- Accuracy ±1.0% / ±0.5%
- DN4 – DN300
- Pulse / 4–20mA output
Overview
Product Introduction
The turbine flowmeter uses a free-spinning rotor whose rotation frequency is proportional to flow velocity. It offers excellent repeatability for clean, low-viscosity liquids, and is widely used for fuel, oil, water and general industrial fluids. Example model — please replace with your actual model details in the admin panel.
Technical Data
Technical Specifications
| Nominal size (DN) | DN4 – DN300 (insertion type up to DN2000) |
|---|---|
| Accuracy | ±1.0% of rate (±0.5% optional) |
| Repeatability | ≤ 0.1% |
| Fluid | Clean, low-viscosity liquids |
| Fluid temperature | -20 °C to +120 °C |
| Pressure rating | PN16 – PN63 (by size) |
| Process connection | Thread / Flange / Wafer (GB / DIN / ANSI) |
| Output signal | Pulse, 4–20mA, RS485 (Modbus) |
| Power supply | DC 24V / battery (by option) |
| Protection rating | IP65 / IP67 |
| Explosion-proof | Ex d IIC T6 (optional) |
| Display | LCD totalizer & flow rate (optional) |
Selection
Flow Range
| Nominal size | Typical flow range |
|---|---|
| DN4 | 0.02 – 0.5 m³/h |
| DN10 | 0.1 – 2.0 m³/h |
| DN25 | 0.5 – 8 m³/h |
| DN40 | 1.5 – 20 m³/h |
| DN50 | 2.5 – 40 m³/h |
| DN80 | 6 – 100 m³/h |
| DN100 | 10 – 160 m³/h |
| DN150 | 22 – 350 m³/h |
| DN200 | 40 – 600 m³/h |
| DN300 | 90 – 1400 m³/h |
Applicability
Working Media & Optional Models
Applicable media
- Clean water
- Fuel & diesel
- Lubricating oil
- Light chemicals
- Cryogenic liquids (option)
Optional models
- Explosion-proof version (Ex d IIC)
- High-temperature version up to +120 °C
- Cryogenic version for LNG / liquid nitrogen
- Insertion type for large pipelines
- Bearing material options (graphite, tungsten carbide)
Installation

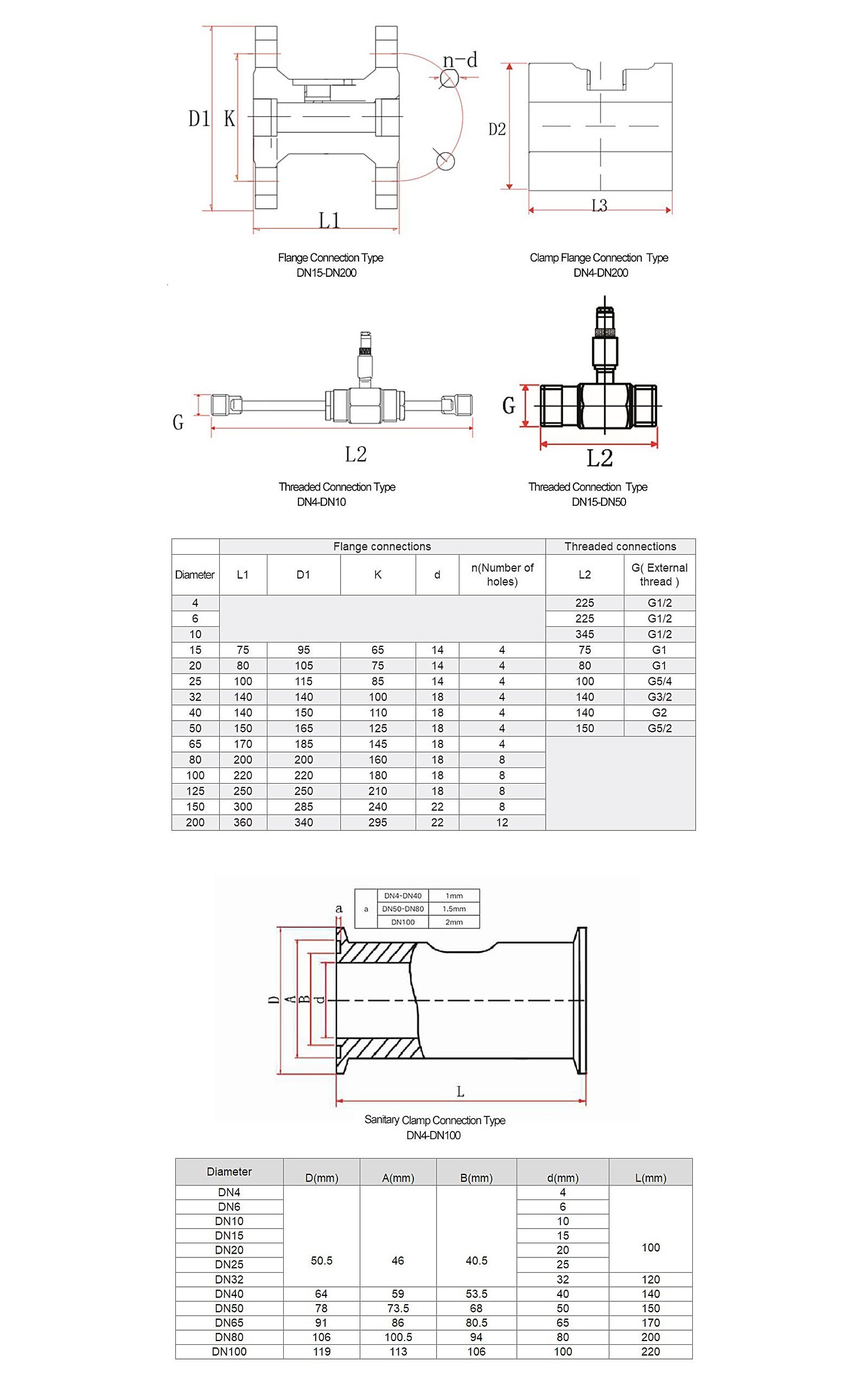

Dimensions
For an accurate selection, send us your working conditions via the inquiry form.
Documents
Downloads
- Product Datasheet (PDF)IF-TF-A-datasheet.pdf PDF coming soon
- User Manual (PDF)IF-TF-A-manual.pdf PDF coming soon
- Certificate / Approval (PDF)IF-TF-A-certificate.pdf PDF coming soon
